Introduction to Trees

A tree is a hierarchical data structure that consists of nodes connected by edges. Unlike linear data structures (arrays, linked lists), trees represent hierarchical relationships and are one of the most important non-linear data structures in computer science.

Why Trees?

Imagine organizing your computer’s file system, representing an organization’s hierarchy, or managing a database index. All these scenarios naturally form tree-like structures where:

• There’s a starting point (root)
• Elements have parent-child relationships
• No cycles exist

Tree Terminology

Before diving deep, let’s understand the key terms:

• Root: The topmost node (starting point)
• Parent: A node that has child nodes below it
• Child: A node that has a parent above it
• Leaf: A node with no children (end points)
• Siblings: Nodes that share the same parent
• Height: Length of the longest path from a node to a leaf
• Depth: Length of the path from root to that node
• Subtree: A tree formed by a node and all its descendants

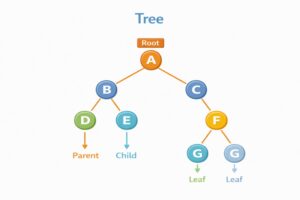

Visual Example:

         A          ← Root (Height: 3, Depth: 0)
        / \
       B   C        ← Level 1 (B and C are siblings)
      / \   \
     D   E   F      ← Level 2 (Leaves)
    /
   G                ← Level 3 (Leaf, Height: 0, Depth: 3)
