Circular Queue
A circular queue is the extended version of a regular queue where the last element is connected to the first element. Thus forming a circle-like structure.
The circular queue solves the major limitation of the normal queue. In a normal queue, after a bit of insertion and deletion, there will be non-usable empty space.

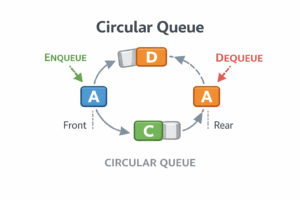

Circular queue representation
Code Implementation
This implementation uses the modulo operator % to wrap indices around .
JavaPythonCC++
class CircularQueue {
private int maxSize;
private int[] queueArray;
private int front;
private int rear;
private int currentSize;
public CircularQueue(int size) {
this.maxSize = size;
this.queueArray = new int[maxSize];
this.front = 0;
this.rear = -1;
this.currentSize = 0;
}
public void enqueue(int value) {
if (isFull()) {
System.out.println("Queue is full");
return;
}
rear = (rear + 1) % maxSize; // Circular increment
queueArray[rear] = value;
currentSize++;
System.out.println("Enqueued: " + value);
}
public int dequeue() {
if (isEmpty()) {
System.out.println("Queue is empty");
return -1;
}
int value = queueArray[front];
front = (front + 1) % maxSize; // Circular increment
currentSize--;
System.out.println("Dequeued: " + value);
return value;
}
public boolean isEmpty() { return currentSize == 0; }
public boolean isFull() { return currentSize == maxSize; }
}
class CircularQueue:
def __init__(self, size):
self.maxSize = size
self.queueArray = [0] * size
self.front = 0
self.rear = -1
self.currentSize = 0
def enqueue(self, value):
if self.isFull():
print("Queue is full")
return
self.rear = (self.rear + 1) % self.maxSize # Circular increment
self.queueArray[self.rear] = value
self.currentSize += 1
print("Enqueued:", value)
def dequeue(self):
if self.isEmpty():
print("Queue is empty")
return -1
value = self.queueArray[self.front]
self.front = (self.front + 1) % self.maxSize # Circular increment
self.currentSize -= 1
print("Dequeued:", value)
return value
def isEmpty(self):
return self.currentSize == 0
def isFull(self):
return self.currentSize == self.maxSize
#include <stdio.h>
#define MAX 100
struct CircularQueue {
int queueArray[MAX];
int front;
int rear;
int currentSize;
int maxSize;
};
void initQueue(struct CircularQueue* q, int size) {
q->maxSize = size;
q->front = 0;
q->rear = -1;
q->currentSize = 0;
}
void enqueue(struct CircularQueue* q, int value) {
if (q->currentSize == q->maxSize) {
printf("Queue is full\n");
return;
}
q->rear = (q->rear + 1) % q->maxSize;
q->queueArray[q->rear] = value;
q->currentSize++;
printf("Enqueued: %d\n", value);
}
int dequeue(struct CircularQueue* q) {
if (q->currentSize == 0) {
printf("Queue is empty\n");
return -1;
}
int value = q->queueArray[q->front];
q->front = (q->front + 1) % q->maxSize;
q->currentSize--;
printf("Dequeued: %d\n", value);
return value;
}
int isEmpty(struct CircularQueue* q) {
return q->currentSize == 0;
}
int isFull(struct CircularQueue* q) {
return q->currentSize == q->maxSize;
}
#include <iostream>
using namespace std;
class CircularQueue {
private:
int maxSize;
int* queueArray;
int front;
int rear;
int currentSize;
public:
CircularQueue(int size) {
this->maxSize = size;
this->queueArray = new int[maxSize];
this->front = 0;
this->rear = -1;
this->currentSize = 0;
}
void enqueue(int value) {
if (isFull()) {
cout << "Queue is full" << endl;
return;
}
rear = (rear + 1) % maxSize; // Circular increment
queueArray[rear] = value;
currentSize++;
cout << "Enqueued: " << value << endl;
}
int dequeue() {
if (isEmpty()) {
cout << "Queue is empty" << endl;
return -1;
}
int value = queueArray[front];
front = (front + 1) % maxSize; // Circular increment
currentSize--;
cout << "Dequeued: " << value << endl;
return value;
}
bool isEmpty() { return currentSize == 0; }
bool isFull() { return currentSize == maxSize; }
};
